ANSUL fire protection products were introduced to the marketplace in 1939 featuring the first cartridge-operated, dry chemical fire extinguisher.

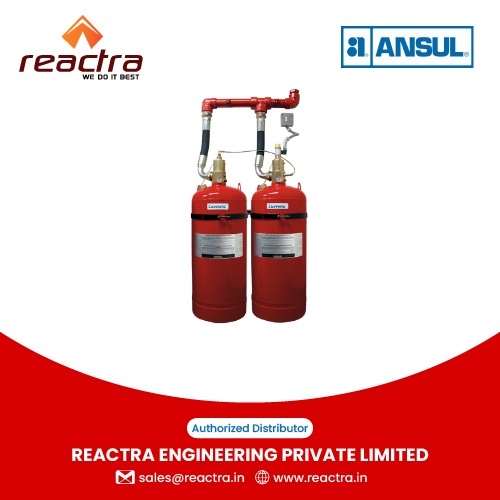

Novec Gas Suppression System

NOVEC - Gas Suppression System

We specialize in the distribution of NOVEC-1230 Gas Suppression System, a highly effective and environmentally friendly solution for protecting valuable assets.

ANSUL is a renowned name in the fire protection industry, known for its innovation and commitment to safety. As an authorized distributor, we provide access to ANSUL’s advanced fire suppression solutions, including the NOVEC-1230 Gas Suppression System.

We offer a complete range of NOVEC-1230 Gas Suppression Systems, including agent cylinders, detection and control panels, piping, and nozzles. Our systems are designed to meet the specific requirements of your facility and provide reliable fire protection.

Cylinder

This section describes the individual components that comprise a complete system. Some items are optional depending on the application, and are indicated as such. The container assembly consists of a container fitted with a valve and internal syphon tube, factory filled with Novec™ 1230, and super pressurized with dry nitrogen to 25 bar @ 21 °C (360 psi @ 70 °F). Containers sharing the same manifold shall be equal in size and fill density. Containers are finished in red and are available
in various sizes. A nameplate is fixed to the container displaying the agent weight, tare weight, gross weight, fill density, charge date and fill location.

More About Products Details Given In The Data Sheet:

Cylinder-Novec Gas Suppression System

Container Valve

The SAPPHIRE valve is a high-flow-rate device specially designed for use in fire systems. Operation is by means of a pressure-differential piston. Container pressure is used within the valve to create a positive force on the piston, sealing the valve closed. Operation of the valve occurs when the upper chamber is vented faster than the ‘make up device’ in the shuttle can replace the pressure. Thereby allowing, the shuttle to be forced up, and free flow of Novec™ 1230 from the valve. Upper chamber pressure is released by the electrical, mechanical or pneumatic actuator.

The container valve is the result of extensive research and development and incorporates many unique safety features. The valve assembly is factory-fitted to the container and is supplied pre-assembled with a low pressure switch (to be ordered separately), pressure gauge and burst disc.

More About Products Details Given In The Data Sheet:

Container Valve-Novec Gas Suppression System

Burst Disc

A burst disc is factory fitted to every valve assembly. It is designed to rupture when the container becomes over pressurized when subjected to temperatures above the designed storage temperature of the container.

More About Products Details Given In The Data Sheet:

Burst Disc-Novec Gas Suppression System

Lower Pressure Switch

A low pressure warning switch can be fitted to every container and must be ordered separately. The device continuously monitors the container pressure and in the event of the pressure dropping below 20.3 bar (294 psi) the switch operates to enable the condition to be signaled to a control unit. This low pressure switch is the primary supply,  of a dual source component used in order to
maintain the supply chain and ensure that adequate stock levels are available to fully support customers and installers.

More About Products Details Given In The Data Sheet:

Lower Pressure Switch-Novec Gas Suppression System
Lower Pressure Switch 1-Novec Gas Suppression System

Electrical Actuators

The removable electrical actuator locates to the top of the container valve. 24 v dc is required for solenoid operation. Provision is made for the connection of a manual actuator to the top of the actuator assembly. Due to the design of the bridge rectifier it will operate regardless of how it is wired up; the positive supply from control panel can be connected to either terminal 1 or 2 with the reverse for the negative supply. The removable electrical actuator has a life span of 10 years from manufacture, which is indicated on the label.

More About Products Details Given In The Data Sheet:

Electrical Actuator-Novec Gas Suppression System

Manual and Pneumatic Actuator

The manual actuator is used to mechanically operate the system at the container position and is fitted to the top of the valve assembly or removable electrical actuator Inadvertent operation is prevented by a safety clip which has to be removed before activation. The pneumatic actuator is used to pneumatically operate the system at the container position and is fitted to the top of the valve assembly or removable electrical actuator Pressure from a ‘master’ container or the ANSUL AUTOMAN II-C Releasing Device is used to actuate the valve, via small bore piping or a flexible hose.

More About Products Details Given In The Data Sheet:

Manual and Pneumatic Actuator-Novec Gas Suppression System
Manual and Pneumatic Actuator 1

Discharge Hose

SAPPHIRE container installations may be connected to the system by means of a flexible discharge hose. This enables containers to be disconnected for maintenance or recharge without dismantling other container mountings, manifold connections and pipework, etc. The flexible discharge hose is provided with a swivel fitting at the inlet.

More About Products Details Given In The Data Sheet:

Discharge Hose

Flexible Actuation Hose

The 1/4 in. stainless steel actuation hose is used to connect the 1/4 in. actuation line to the pneumatic actuator located on the container discharge valve. The hose can be used when the actuation line is rigid 1/4 in. pipe and fittings or from the pilot pressure port on the master container to the pneumatic actuators on the slave containers. The hose has a 1/4 in. NPT male thread on one end and a 7/16-20 female thread on the other end. A male adaptor, (either Part No. 32338 or 570342), is required with this hose. Three lengths of hoses are available.

Female Actuation Hose

The 1/4 in. stainless steel, female actuation hose is used to connect the actuation line compression tees between each agent tank. The hose has the same thread, 7/16-20, as the compression tees.

More About Products Details Given In The Data Sheet:

Manifold Check Valve

Manifold check valves are of mushroom pattern type and lift into the manifold as discharge occurs. The function of the check valve is to prevent loss of extinguishing agent during discharge from an outlet, should a container have been removed. Manifolds are constructed of standard Schedule 40 pipe and 300 lb fittings. The check valves assemble directly into the fittings.

More About Products Details Given In The Data Sheet:

Manifold Check Valve
Male Tee and Elbow

The male actuation tee is used to connect multiple actuation hoses together. The actuation tee has a 7/16-20 thread for connecting to the female actuation hose and a NPT thread for connecting to the pneumatic actuator on the container discharge valve.

Male Actuation Elbow

The male actuation elbow is used to connect the actuation hose to a single or last container in a multiple container system. The elbow connects between the hose and the pneumatic actuator on the valve. The elbow has a 7/16-20 thread for connecting to the hose and a 1/4 in. NPT thread for connecting to the pneumatic actuator on the container discharge valve.

More About Products Details Given In The Data Sheet:

Male Tee and Elbow
Male Tee and Elbow1
Discharge Pressure Switch

The pressure switch is activated by pressure from the agent during discharge and can be used to signal to a control panel that the system has actually discharged. The pressure switch latches on operation and has a reset plunger.

Fixing Brackets

The bracket assembly consists of a nut, bolt, and two bracket straps (back channel must be supplied by others). Approved type of Unistrut Channel is series P1000T, 41 mm x 41 mm (1.6 in. x 1.6 in.). To securely hold the container in position during the system discharge, a single bracket assembly is required per container. Each strap is notched for insertion into the back channel allowing the container to be properly aligned. The bracket assembly is designed to be mounted to a rigid vertical surface with the container assembly resting fully on the floor.

More About Products Details Given In The Data Sheet:

Discharge Pressure Switch-FM-200 Gas Suppression System

Ready to enhance your fire suppression capabilities with ANSUL – NOVEC Products? Contact us today for inquiries, quotations Reactra Engineering Private Limited and benefit from reliable fire suppression solutions backed by expertise and quality.
